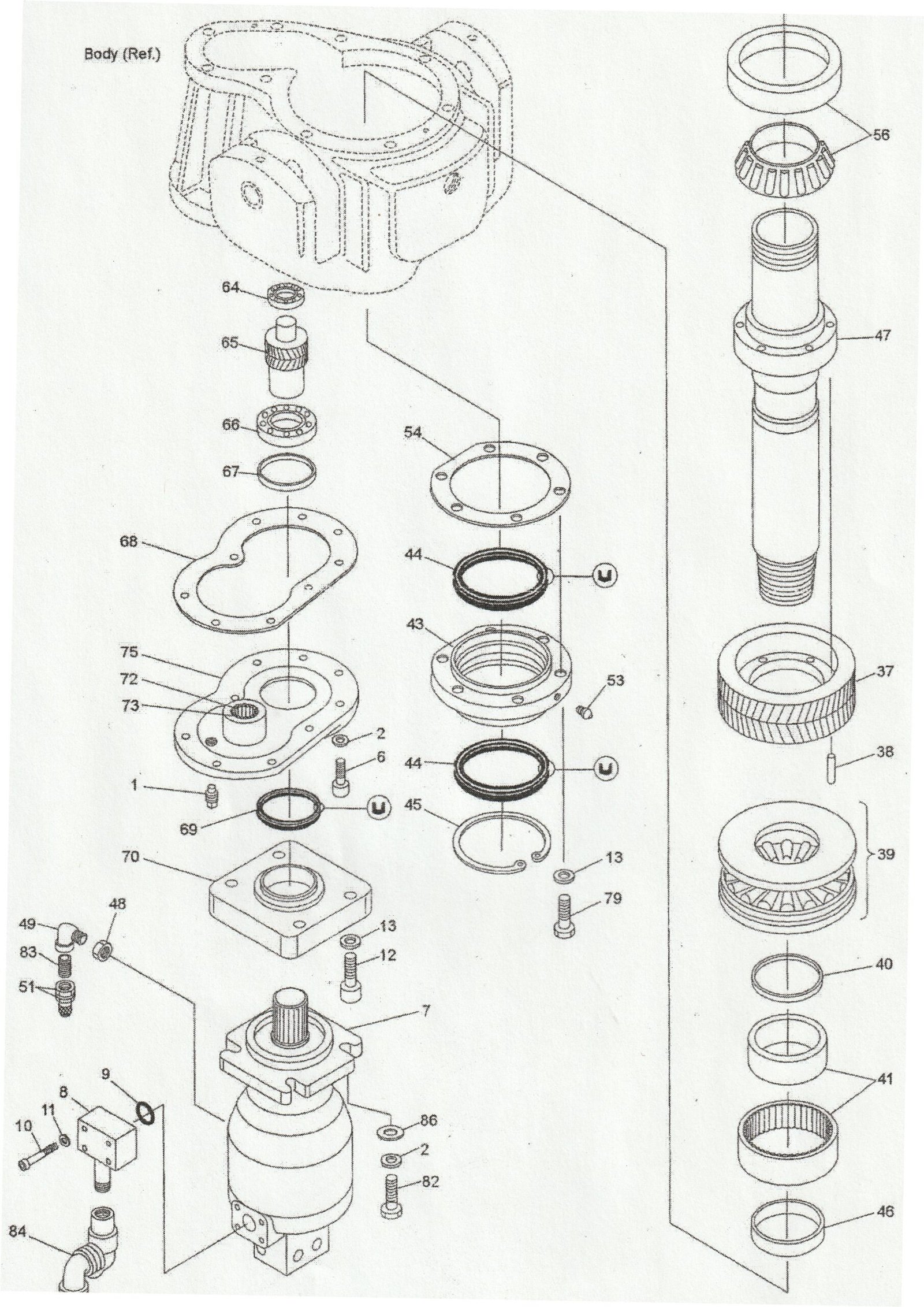

| ITEM | PN# | QTY | Description |
| 1 | 20627 | 1 | 3/4″ Magnetic Drain Plug |
| 2 | 31827 | 16 | 1/2″ Lock washer |
| 3 | 57819 | 1 | Shim Set |
| 4 | 51412 | 1 | Pull Pin Torque Reins |
| 5 | 25515L | 1 | Long Stiff Arm |
| 5 | 25515S | 1 | Short Stiff Arm |
| 6 | 22353 | 14 | 1/2″-13 x 1 1/2″ Long, Socket Head Cap Screw |
| 7 | 62819 | 1 | Hydraulic Motor |
| 8 | 59856 | 2 | Motor Blocks W/ O-Ring |
| 9 | 25856-1 | 2 | Motor Blocks W/ O-Ring |
| 10 | 59894 | 8 | 3/8″ 16 X 2-3/4″ Socket Head (Motor) |
| 11 | 25894-1 | 8 | 3/8″ lock washer |
| 12 | 25058 | 8 | 1/2″ 13 X 1-1/2″ Socket Head (Lower plate) |
| 13 | 25058-1 | 23 | 5/8″ Lock washer |
| 14 | 23901 | 9 | 5/8″ 11 X 1-1/2 Hex Cap Screws |
| 15 | 25060 | 2 | Dowel Pin |
| 16 | 25202 | 1 | Elevator Bail |
| 17 | 25061 | 1 | Gooseneck Pipe Plug |
| 18 | 82090 | 1 | Gooseneck Floater |
| 19 | 25094 | 1 | Floating Washpipe |
| 20 | 82091 | 1 | Bonnet Floater |
| 21 | 2530-14 | 2 | O-Ring For Brass (INCLUDED IN PACKING KIT) |
| 22 | 25705 | 8 | Nylon Tip Set Screws for Washpipe |
| 23 | 82102 | 8 | Packing Nut Lock Screw — OMITTED |
| 24 | 2568-010 | 3 | O-Ring for Set Screws |
| 25 | 25099 | 3 | Set Screws for Floating Washpipe |
| 26 | 82097 | 1 | Upper Packing Nut Ring |
| 27 | 82093 | 1 | Floater Upper Washpipe Packing Nut |
| 28 | 82092 | 1 | Floater Lower Washpipe Packing Nut |
| 29 | 25327 | 1 | Packing Set |
| 30 | 82096 | 1 | Spacer & Lantern Ring |
| 31 | 25062 | 1 | Packing Nut Grease Fitting |
| 32 | 25326 | 1 | Plain Spacer Ring |
| 33 | 25324 | 1 | Packing Bottom Ring |
| 34 | 44482 | 1 | Seal Protector Stem |
| 35 | 31843 | 2 | Bail Pin Groove Pin |
| 36 | 51156 | 2 | Bail Pins |
| 37 | 56921 | 1 | Main Gear |
| 38 | 20746 | 6 | Ring Gear Groove Pins |
| 39 | 20489 | 1 | Load Bearing |
| 40 | 58640 | 1 | Spacer Ring Stem |
| 41 | 20607 | 1 | Lower Stem Bearing & Race |
| 42 | 24045 | 1 | Body |
| 43 | 58641 | 1 | Lower Bearing Retainer Stem |
| 44 | 20622 | 2 | Lower Oil Seal |
| 45 | 30361 | 1 | Lower Stem Oil Seal Snap Ring |
| ITEM | PN# | QTY | Description |
| 46 | 20615 | 1 | Lower Stem Wear Ring |
| 47 | 44481N | 1 | New Style Stem |
| 47 | 44481O | 1 | Old Style Stem (Slots) |
| 48 | 61527 | 1 | #10 o-ring x #12 fp adapter |
| 49 | 47262 | 1 | 3/4″ St. Elbow |
| 51 | 25097 | 1 | 3/4″ Male quick Disconnect |
| 53 | 25063 | 1 | Oil Seal Grease Fitting |
| 54 | 46155 | 1 | Lower Bearing Retainer Gasket |
| 55 | 25064 | 2 | Socket Head Pipe Plug |
| 56 | 20488 | 1 | Upper Stem Bearing & Race3 |
| 57 | 58620 | 1 | Upper Oil Seal |
| 58 | 56121 | 1 | 2nd Reduction Upper Slider Gear |
| 59 | 57735 | 1 | Upper Gear Cover Plate |
| 60 | 56130 | 1 | Final Reduction Upper Main Gear Pinion |
| 61 | 56148 | 3 | Roller Bearings |
| 62 | 56146 | 1 | 2nd Reduction “Long Skinny” Pinion |
| 63 | 57750 | 1 | Cluster Gear Key |
| 64 | 56151 | 1 | Upper Motor Drive Gear Bearing |
| 65 | 56973 | 1 | 1st Reduction “Mt. Drive” Pinion |
| 66 | 56150 | 1 | Lower Motor Drive Gear Bearing |
| 67 | 58644 | 1 | 1st Reduction Pinion Spacer |
| 68 | 58621 | 1 | Lower Gear Cover Gasket |
| 69 | 56152 | 1 | Motor Drive Oil Seal |
| 70 | 25525 | 1 | Motor Adaptor Plate |
| 71 | 72379 | 1 | Motor Shafter Adaptor |
| 72 | 56154 | 1 | Retainer Ring |
| 73 | 25158 | 1 | Lower plate Bearing |
| 74 | 56156 | 1 | Long Gear Key |
| 75 | 57659 | 1 | Lower Gear Cover Plate |
| 76 | 56972 | 1 | First Reduction Lower Slider Gear |
| 77 | 22177 | 1 | Relief Vent |
| 78 | 25389 | 1 | 3/4″ Tapped for 1/8″ Vent Relief |
| 79 | 25065 | 6 | 5/8-11 X 1 3/4 Large Hex Head Cap Screws |
| 80 | 25197 | 1 | Saver Sub |
| 81 | 73109 | 1 | 1/2″ NPT Gear Box Sight Glass |
| 82 | 25066 | 4 | 1/2″-13 x 1 1/2″ Long, HEX Head Cap Screw |
| 83 | 35768 | 1 | 3/4″ Close Nipple |
| 84 | 25535 | 2 | 1″ Style 10 Swivel Joint |
| 85 | 25068 | 1 | Shackle |
| 86 | 46719 | 4 | 1/2″ Special Motor Flat Washers |
| 87 | 25067 | 1 | Safety Cable |
| 88 | 25033 | 1 | Guard |
| 89 | 55061 | 1 | Gear Box Sight Glass 3/4″ O-Ring |
