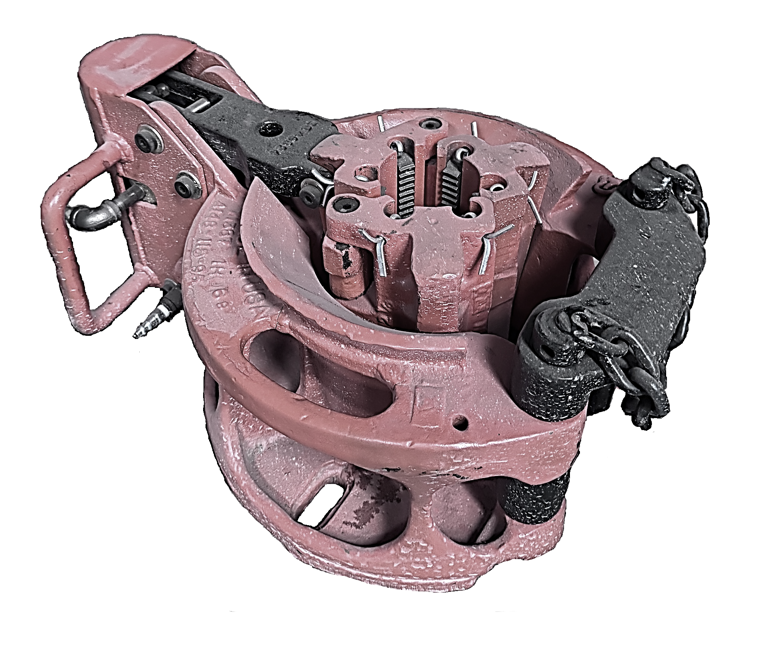

GUIBERSON T-60 & T-40 AIR SLIP/SPIDER
Category: HANDLING TOOLS – PARTS; DIES & INSERTS
T-40
| SLIP BODY PN# | SLIP SIZE | INSERT PN# | DESCRIPTION |
| 62471 | 2 7/8″ | 62479 | 1.050″ INSERTS |
| 62480 | 1.315″ INSERTS | ||
| 62481 | 1.660″ INSERTS | ||
| 62482 | 1.90″ INSERTS | ||
| 62483 | 2″ INSERTS | ||
| 62484 | 2 1/16″ INSERTS | ||
| 42597 | 2 3/8″ INSERTS | ||
| 42598 | 2 7/8″ INSERTS | ||
| 62472 | 3 1/2″ | 42599 | 3 1/2″ INSERTS |
| 58039 | 4 1/2″ | 4 1/2″ INTEGRAL |

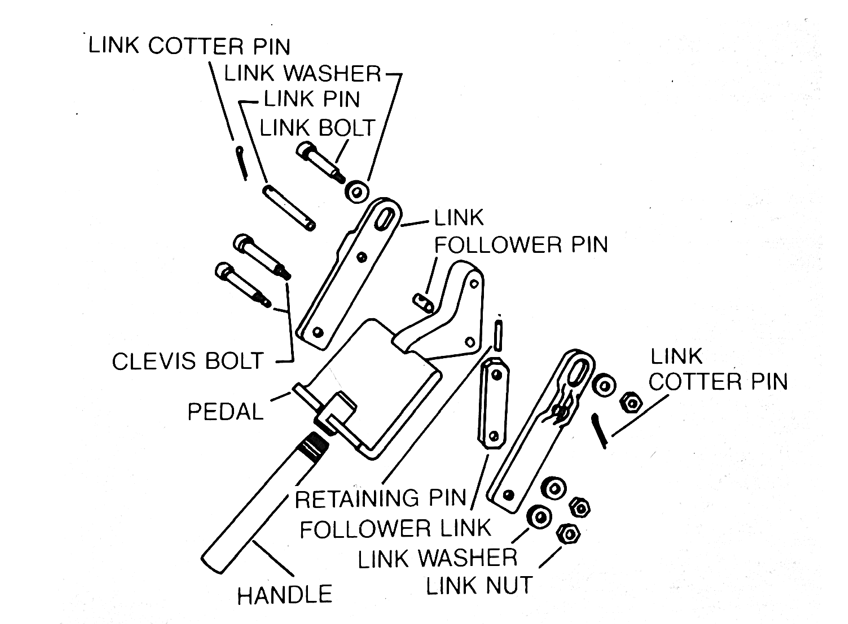

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 26073 | 2 | CLEVIS BOLT |
| 28410 | 2 | COTTER PIN |
| 28254 | 1 | FOLLOWER LINK |
| 21786 | 1 | FOLLOWER PIN |
| 28255 | 1 | HANDLE |
| 28253 | 2 | LINK |
| 24212 | 1 | LINK BOLT |
| 24647 | 3 | LOCK NUT |
| 24235 | 2 | LINK WASHER |
| 24223 | 2 | PIVOT WASHER |
| 21784 | 1 | LINK PIN |
| 28240 | 1 | PEDAL |
| 28445 | 1 | RETAINING PIN |
| 56810 | 1 | REPAIR KIT |

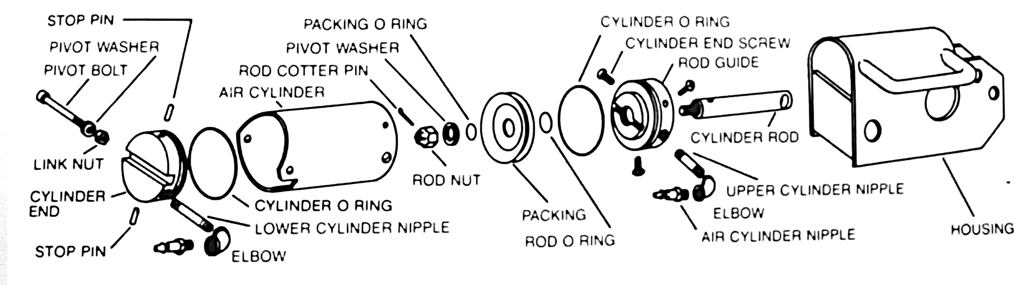

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 54569 | 1 | AIR CYLINDER- COMPLETE |
| 50644 | 1 | CYLINDER BARREL |
| 18415 | 3* | CYLINDER END SCREW |
| 18496 | 1* | CYLINDER O-RING |
| 26894 | 1 | CYLINDER ROD |
| 27860 | 1* | PACKING (PISTON) |
| 27861 | 1* | PACKING O-RING |
| 27859 | 1* | ROD COTTER PIN |
| 50648 | 1 | ROD GUIDE |
| 27858 | 1* | ROD NUT |
| 19337 | 2* | ROD O-RING |
| 24223 | 1* | PIVOT WASHER |
| 26353 | 1 | PIVOT BOLT |
| 51087 | 1 | CONTROL LINK |
| 27864 | 2 | ELBOW |
| 37811 | 1 | HOUSING |
| 26359 | 2 | HOUSING BOLT |
| 24647 | 4 | LOCK NUT |
| 27862 | 1 | LONG NIPPLE |
| 27863 | 1 | SHORT NIPPLE |
| 24212 | 1 | LINK BOLT |
| 66172 | 2 | AIR CYLINDER NIPPLE |
| 24223 | 4 | PIVOT WASHER |
| 24235 | 2 | LINK WASHER |
| 52814 | 1 | PISTON ROD PIN |
| 80500 | 1 | PLUG, ORIFICE |
| 84052 | REPAIR KIT FOR AIR ACTUATING ASSEMBLY | |
| 54816 | * = INCLUDED | REPAIR KIT FOR AIR CYLINDER (54569) |
T-60
| SLIP BODY PN# | SLIP SIZE | INSERT PN# | DESCRIPTION |
| 62461 | 2 7/8″ | 62473 | 1.050″ INSERTS |
| 62474 | 1.315″ INSERTS | ||
| 62475 | 1.660″ INSERTS | ||
| 62476 | 1.90″ INSERTS | ||
| 62477 | 2″ INSERTS | ||
| 62478 | 2 1/16″ INSERTS | ||
| 42586 | 2 3/8″ INSERTS | ||
| 42587 | 2 7/8″ INSERTS | ||
| 62462 | 3 1/2″ | 42588 | 3 1/2″ INSERTS |
| 49933 | 4″ | 4″ INTEGRAL | |
| 34989 | 4 1/2″ | 4 1/2″ INTEGRAL |
MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 26073 | 2 | CLEVIS BOLT |
| 28410 | 2 | COTTER PIN |
| 21787 | 1 | FOLLOWER LINK |
| 21786 | 1 | FOLLOWER PIN |
| 28255 | 1 | HANDLE |
| 21792 | 2 | LINK |
| 24212 | 1 | LINK BOLT |
| 24647 | 3 | LOCK NUT |
| 24235 | 2 | LINK WASHER |
| 24223 | 2 | PIVOT WASHER |
| 21784 | 1 | LINK PIN |
| 29440 | 1 | PEDAL |
| 28445 | 1 | RETAINING PIN |
| 56811 | 1 | REPAIR KIT |

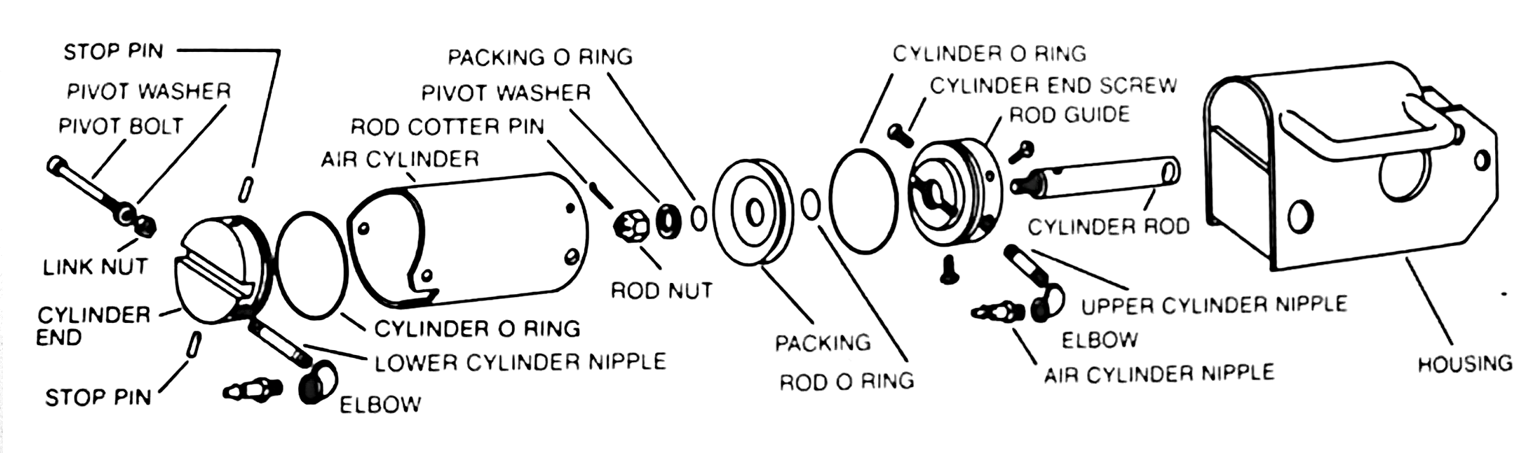

MANUAL HANDLE ASSEMBLY
| PN# | QTY REQ’D | DESCRIPTION |
| 54569 | 1 | AIR CYLINDER- COMPLETE |
| 50644 | 1 | CYLINDER BARREL |
| 18415 | 3* | CYLINDER END SCREW |
| 18496 | 1* | CYLINDER O-RING |
| 26894 | 1 | CYLINDER ROD |
| 27860 | 1* | PACKING (PISTON) |
| 27861 | 1* | PACKING O-RING |
| 27859 | 1* | ROD COTTER PIN |
| 50648 | 1 | ROD GUIDE |
| 27858 | 1* | ROD NUT |
| 19337 | 2* | ROD O-RING |
| 24223 | 1* | PIVOT WASHER |
| 26353 | 1 | PIVOT BOLT |
| 46024 | 1 | CONTROL LINK |
| 27864 | 2 | ELBOW |
| 43733 | 1 | HOUSING |
| 26359 | 2 | HOUSING BOLT |
| 21784 | 1 | LINK PIN |
| 28445 | 2 | LINK ROLL PIN |
| 24647 | 4 | LOCK NUT |
| 27862 | 1 | LONG NIPPLE |
| 27863 | 1 | SHORT NIPPLE |
| 24212 | 1 | LINK BOLT |
| 66172 | 2 | AIR CYLINDER NIPPLE |
| 24223 | 4 | PIVOT WASHER |
| 24235 | 2 | LINK WASHER |
| 52814 | 1 | PISTON ROD PIN |
| 80500 | 1 | PLUG, ORIFICE |
| 84052 | REPAIR KIT FOR AIR ACTUATING ASSEMBLY | |
| 54816 | * = INCLUDED | REPAIR KIT FOR AIR CYLINDER (54569) |
