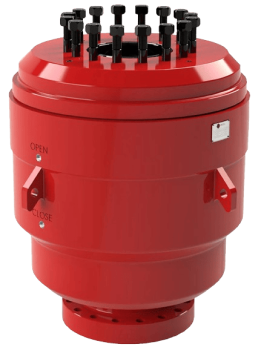

HYDRIL “GK” ANNULAR BOP
Category: BLOWOUT PREVENTERS – RAM STYLE, ANNULAR STYLE
| ITEM | DESCRIPTION |
| 1 | BOP Head |
| 2 | Packing Element |
| 3 | Piston |
| 4 | Slotted Sleeve |
| 5 | Body |
| 6 | Head Gasket |
| 8 | Upper U-Seal |
| 9 | Middle U-Seal |
| 10 | Lower U-Seal |
| 17 | Pipe Plug |
| 18 | Cap Screw- Slotted Sleeve |
| 19 | Head Lock Screw |
| 29 | Wear Plate (Certain Models) |
| 30 | Screw- Wear Plate (Certain Models) |
| DESCRIPTION | SEALING ELEMENT | SEAL KIT |
| 7 1/16″, 3M GK Style, Natural | 1003252-01 | 3810K |
| 7 1/16″, 3M GK Style, Nitrile | 1003252-02 | |
| 7 1/16″, 5M GK Style, Natural | 1003253-01 | 3823K |
| 7 1/16″, 5M GK Style, Nitrile | 1003253-02 | |
| 11″, 3M GK Style, Natural | 1003259-01 | 1002127 |
| 11″, 3M GK Style, Nitrile | 1003259-02 | |
| 11″, 5M GK Style, Natural | 1003260-01 | 1002150 |
| 11″, 5M GK Style, Nitrile | 1003260-02 | |
| 13 5/8″, 3M GK Style, Natural | 1003262-01 | 1002189 |
| 13 5/8″, 3M GK Style, Nitrile | 1003262-02 | |
| 13 5/8″, 5M GK Style, Natural | 1003263-01 | 1002209 |
| 13 5/8″, 5M GK Style, Nitrile | 1003263-02 |
