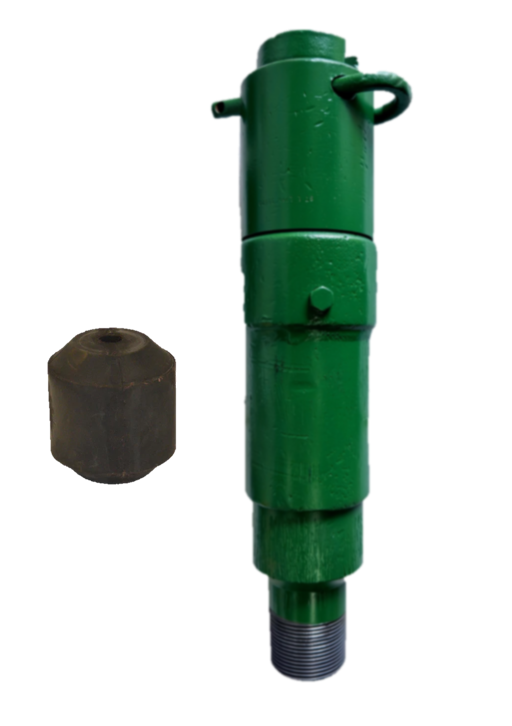

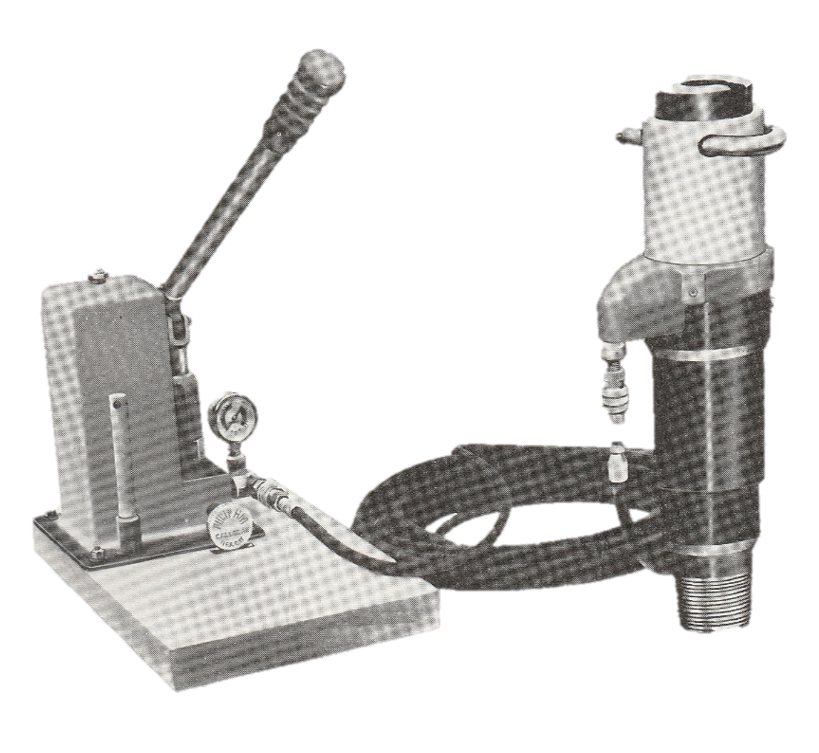

OIL SAVER ; STAR PUMP; PINE PUMP
Category: ROD/ WIRELINE – SWAB CUPS; OIL SAVER; ROPE SOCKETS; JARS
| DESCRIPTION | QTY. REQD. | SINGLE (H) | DOUBLE (HD) | TRIPLE |
| BASE | 1 | |||
| 2 3/8″ 8RD EUE | 40624 | |||
| 2 7/8″ 8RD EUE | 40623 | |||
| 3″ LP | 40726 | |||
| BODY | 1 | 39760 | 40274 | E275B |
| BUSHING WITH CLIPS | → | 2 SETS | 4 SETS | 6 SETS |
| 3/8″ – 5/8″ | 46176 | |||
| 3/4″-1″ | 41571 | |||
| BUSHING CLIP ONLY | 5203 | |||
| GATE | 1 | 39672 | ||
| BUSHING SPACER | → | N/A | (QTY 1) 40275 | (QTY 2) 40275 |
| HOUSING | 1 | 40617 | ||
| HOUSING BUSHING | 1 | 31742 | ||
| HOUSING NIPPLE | 1 | 59064 | ||
| HOUSING NOSE | 1 | 40629 | ||
| HOUSING PLUG | 1 | 13550 | ||
| HOUSING STREET ELBOW | 1 | 40639 | ||
| RAM | 1 | 40622 | ||
| REDRESSING TOOL | 1 | 40642 | ||
| RUBBER | → | QTY 1 | QTY2 | QTY3 |
| BLANK-5/16″ | 42883 | |||
| 3/8″-5/8″ | 39675 | |||
| 3/4″ | 41572 | |||
| SPRING | 1 | 39676 | ||
| YOKE | 1 | 27484 | ||
| YOKE RETAINER PIN | 1 | 54509 | ||
| 50′ HOSE | 1 | 40631 | ||
| SEAL REPAIR KIT | 1 | 53728 | ||

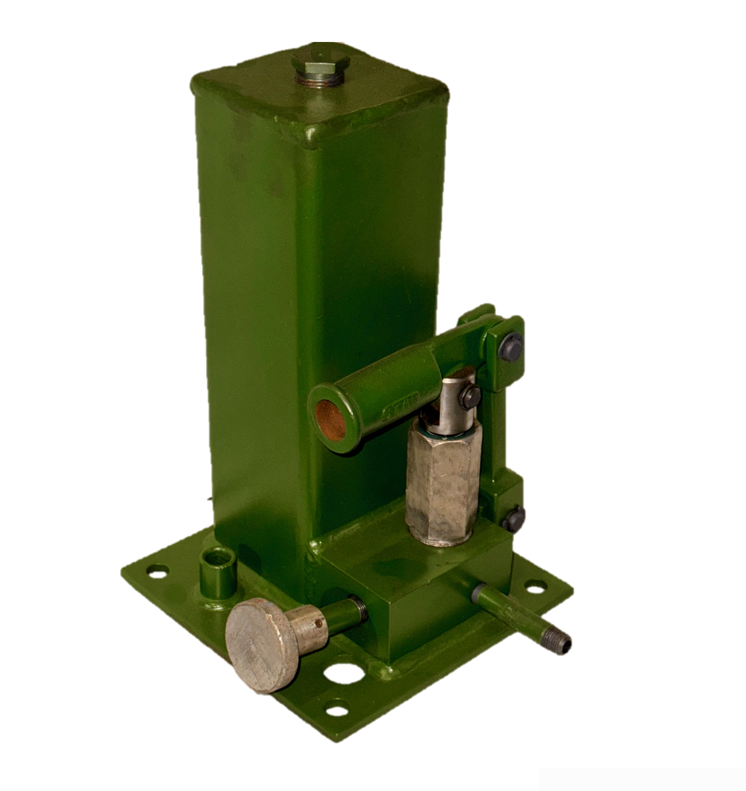

| DESCRIPTION | QTY. REQD. | PN# |
| COMPLETE PUMP ASSY | 68883 | |
| FILL PLUG | 1 | 68860 |
| RELIEF FITTING | 1 | 68863 |
| SOCKET | 1 | 68854 |
| LEVER | 1 | 68857 |
| PIN | 3 | 68861 |
| LINK | 1 | 68858 |

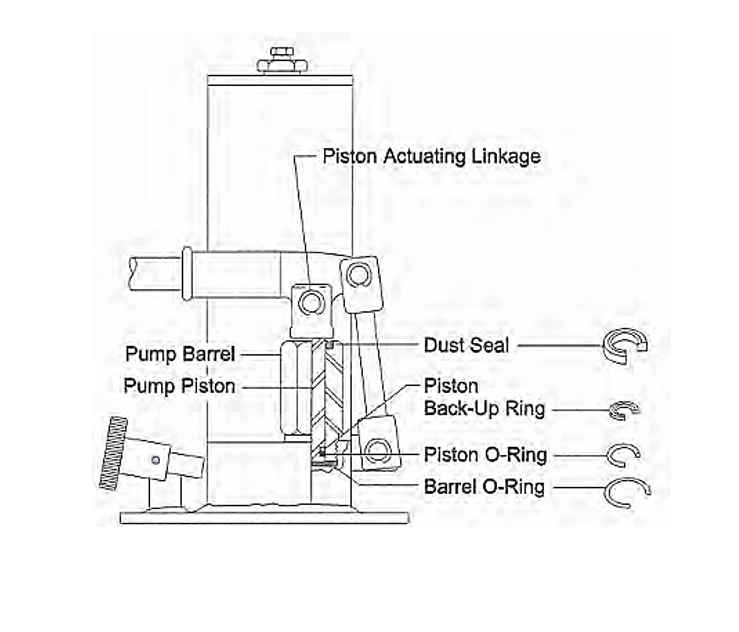

| PISTON | 1 | 68862 |
| BARREL | 1 | 68856 |
| RING RETAINER | 6 | 68855 |

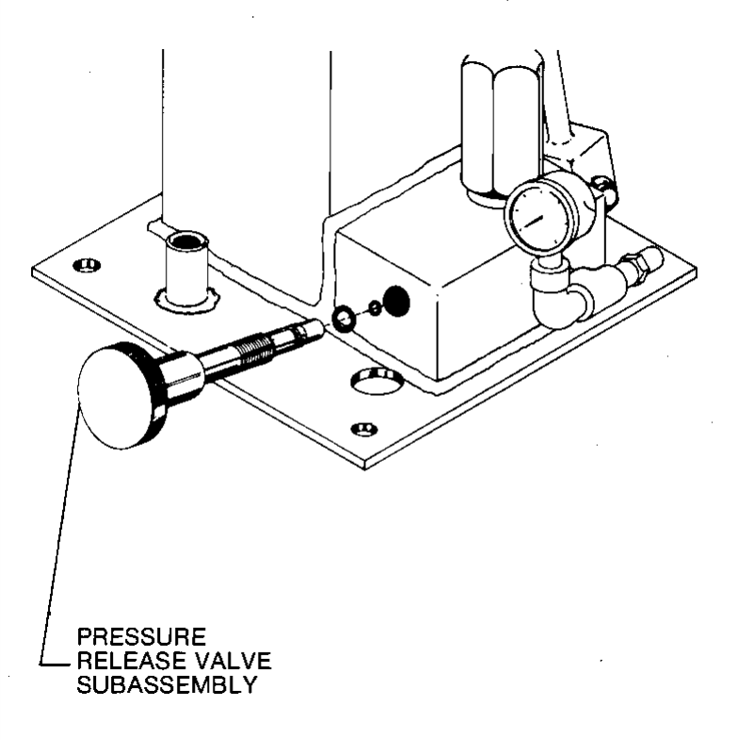

| PRESSURE RELIEF VALVE ASSY | 1 | 82589 |
| PIPE PLUG | 1 | 68869 |
| FILTER | 1 | 82588 |
| ASSEMBLY TOOL | 1 | 40642 |
| NUT | 4 | 40655 |
| BOLT | 4 | 40652 |
| LOCK WASHER | 4 | 12758 |
| PUMP BASE | 1 | 40662 |
| GAUGE | 1 | 40654 |
| NOSE | 1 | 40629 |
| SHORT NIPPLE | 1 | 59064 |
| LONG NIPPLE | 1 | 27863 |
| TEE | 1 | 40640 |
| WASHER | 4 | 40653 |
| ELBOW | 1 | 40639 |
| STAR REPAIR KIT | 68829 | |
| PINE REPAIR KIT | 906 |
